Blow injection molding: injection blow vs extrusion blow vs stretch blow, for buyers

Injection blow, extrusion blow and stretch blow molding make different bottles for different reasons. How each works, how to choose, and what to put in the RFQ so the neck, the cap and the walls come out right.

Filed under Engineering and services

Short answer: "Blow injection molding" is usually a search for one of two things: injection blow molding (IBM), a specific process for small, precise bottles, or the difference between blow molding and injection molding. Injection molding makes solid parts: caps, housings, handles. Blow molding makes hollow ones: bottles, jars, tanks. Injection blow molding sits in between. It injection-molds a preform with a finished neck, then blows the body out in a second mold. Pick it for small containers whose neck and thread must be exact. Pick extrusion blow molding for larger or handled containers, and injection stretch blow molding for PET bottles.

Blow injection molding questions usually come from a buyer holding a product that needs a bottle and a cap and wondering whether it is one job or two. It is almost always two: the cap is injection-molded, the bottle is blow-molded, and they have to fit each other. This note explains the three blow molding processes, how to tell which one a container needs, and what to put in the RFQ so the neck, the cap and the wall thickness come out right. For the wider choice between plastic processes, start with our note on which plastic manufacturing process fits your part.

Injection molding vs blow molding: the basic split

Injection molding forces molten plastic into a closed steel cavity under high pressure. The part comes out solid, with tight dimensions on every face, which is why closures, pump bodies and housings are molded this way. Blow molding inflates a hot tube or preform against a chilled mold, like a balloon inside a box. For the body, only the outside surface is set by the mold; the inside follows wherever the wall thickness lands.

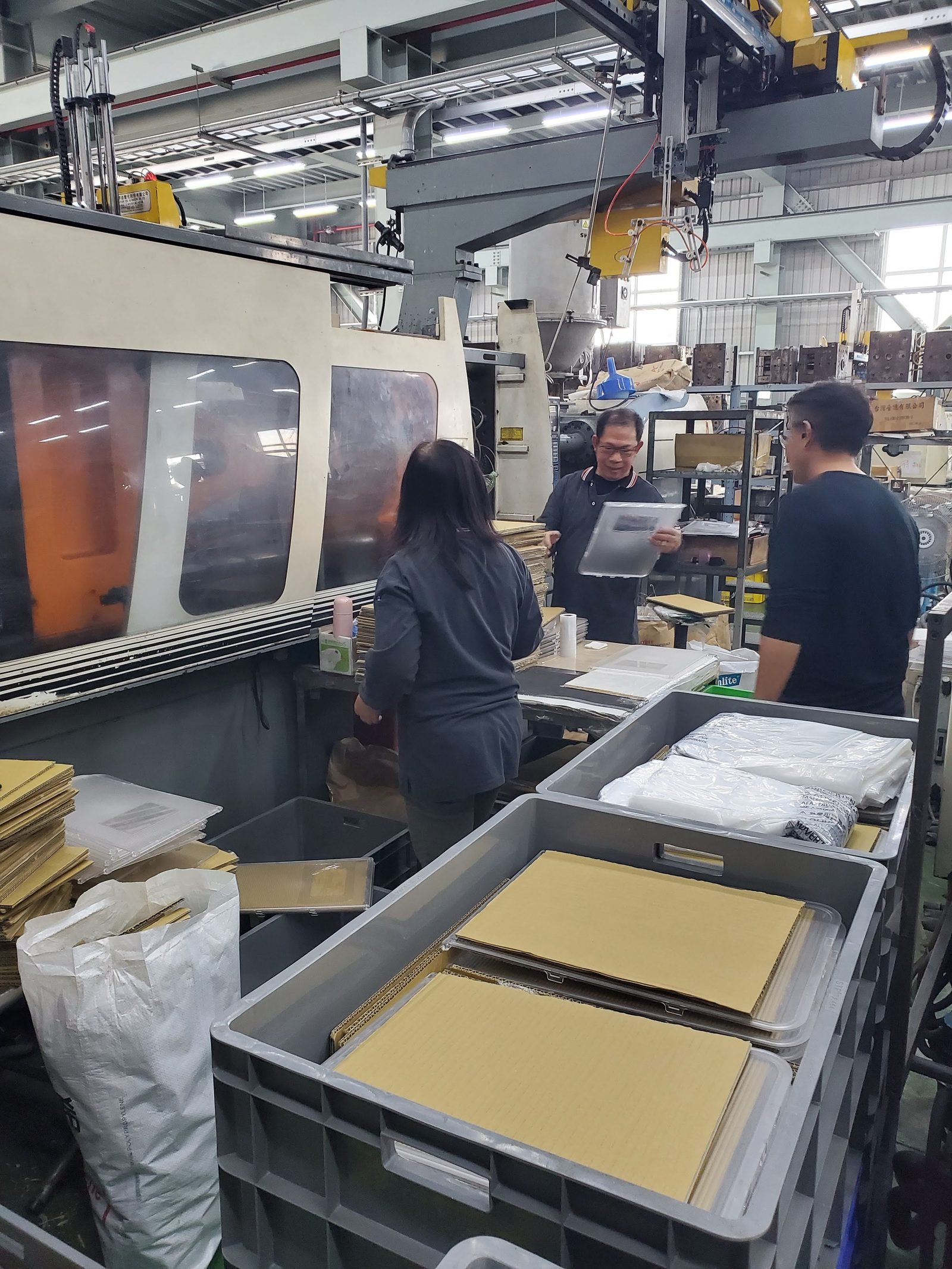

An injection molding press with a take-out robot on the gantry above it, as staff at the press hold up and check freshly molded clear parts beside crates of finished parts — An injection molding press at a partner factory, with the take-out robot overhead. Caps, closures and housings are made this way; the bottle they fit is blow-molded.

That difference shows up in the tooling. CDF Corporation, a packaging maker, notes that "blow molding tools are generally less expensive than those for injection molding", because a blow mold does not have to resist injection pressure. The trade is control: the wall of a blown part is set by how the plastic stretches, not by steel on both sides.

Within blow molding there are three processes. As Wikipedia's summary puts it, "In general, there are three main types of blow molding: extrusion blow molding, injection blow molding, and injection stretch blow molding."

Extrusion blow molding (EBM)

"Blow molding starts by extruding a thin-walled tube called the parison." The mold closes on the hanging tube, pinches off the bottom, and air inflates it. The pinch-off leaves excess plastic: "Once the plastic is firm the mold opens and the flash is trimmed away from the top and bottom." That trimmed flash is usually reground and fed back in.

EBM is the workhorse for larger containers and for shapes with an offset neck or a hollow handle, because the parison can be pinched and blown into shapes a rigid preform cannot reach. Its weak point is the neck. The thread is formed by the mold closing on soft plastic, not molded against a core, so it is less exact. Lumafield, which CT-scans molded parts, gives a quick way to spot one on the shelf: "If the bottle has an open, threaded neck but lacks a separate pre-molded finish, it was likely made using EBM."

Injection blow molding (IBM)

Injection blow molding is a two-step process in one machine. CDF describes the first step: "In this process though, the preform is created by injection molding plastic into the gap between the cavity walls and an internal core." Wikipedia adds that "The cavity mold forms the external shape and is clamped around a core rod which forms the internal shape of the preform." and that "The preform consists of a fully formed bottle/jar neck with a thick tube of polymer attached, which will form the body."

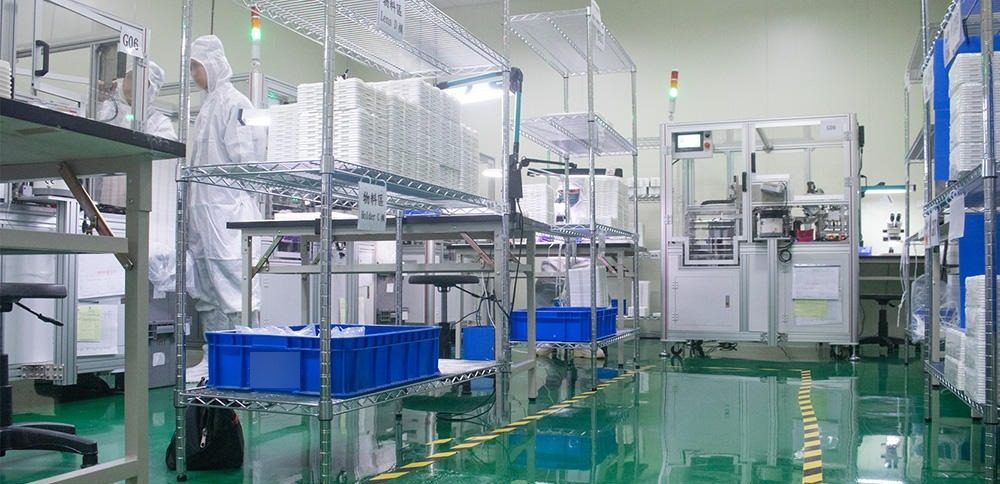

A cleanroom molding area with a gowned operator, wire racks of white molded trays, blue parts bins and an automated cell on a green epoxy floor — A cleanroom molding area at a partner factory. Pharmacy and medical packaging, where neck accuracy matters most, is often molded in rooms like this.

The core rod then carries the preform to the blow station, air through the core rod inflates the body, and a third station strips the finished bottle. Because the neck was injection-molded, it is the most accurate neck finish of the three processes. MD Plastics, which supplies molding machine components, explains why: "IBM excels here because the neck ring forms the finish before blowing." And there is no pinch-off to trim: "No trimming is required, as IBM does not produce flash or excess plastic."

The limits are size and cost. Of injection blow molding, Wikipedia says: "This is the least-used of the three blow molding processes, and is typically used to make small medical and single serve bottles." CDF notes the throughput penalty compared with extrusion: "Product rates are lower than for extrusion." A summary of Samuel Belcher's Practical Guide to Injection Blow Molding lists the downsides plainly: "Challenges: High tooling costs, size limits, and resin-specific tweaks." On the tooling, Wikipedia notes "The preform and blow mold can have many cavities, typically three to sixteen depending on the article size and the required output." Every cavity needs its own preform cavity, blow cavity and core rods, so an IBM tool set is a significant investment, and it pays back only at volume.

Injection stretch blow molding (ISBM)

ISBM is how water and soda bottles are made. The preform is injection-molded with its finished neck, then reheated and stretched lengthwise by a rod before air inflates it. Lumafield sums up why: "The key difference in ISBM is that the preform is stretched before blowing, enhancing material strength and clarity." The stretching orients the PET molecules, which is what makes a thin-walled bottle strong and clear.

In the two-stage version, the preforms are molded in one place and blown later, often at the filler's plant. Wikipedia: "These preforms are packaged, and fed later (after cooling) into a reheat stretch blow molding machine." If your product is a clear PET bottle, this is almost certainly your process. MD Plastics is blunt about the alternative: "Standard PET requires Injection Stretch Blow Molding (ISBM), not IBM."

How to choose between IBM, EBM and ISBM

Size. Small containers (single-serve, pharmacy, cosmetic, lab) point to IBM. Larger containers and drums point to EBM.
Neck and thread accuracy. If the closure must seal, snap or be child-resistant, the neck is the critical feature. IBM and ISBM mold it; EBM forms it.
Material and clarity. For IBM, MD Plastics lists the usual resins: "HDPE, PP, PETG, and select PC grades run in IBM." Clear PET bottles mean ISBM. HDPE and PP jugs are typically EBM.
Handles and offset necks. A hollow handle or an off-center neck is usually EBM.
Volume. All three need dedicated molds. IBM's multi-station tool set costs the most, so it needs volume to pay back.
Scrap and finish. EBM produces trimmed flash and a pinch-off scar on the base; IBM does not.

If the answer is still unclear, the decision usually comes down to the neck and the volume. Our DFM review note covers what to send so a factory can review the design before tooling is cut.

What to put in the RFQ for a blow-molded container

Neck finish by standard designation, not a sketch. Bottle necks follow industry finish standards (for example, a "24-410" finish is a 24 mm neck with a 410 thread style). Name the finish and the closure it must fit.
The closure itself. Send the actual cap, or its drawing, and ask for fit and leak testing with it. A cap from one supplier and a bottle from another only work if both hold the same finish standard.
Resin grade by supplier and product code, and whether regrind is allowed. Regrind is normal in blow molding, but it has to be controlled. From the Belcher summary: "Belcher warns against mixing regrind sizes, as it causes surging; uniform grinding or repelletizing maintains consistency."
Minimum wall thickness and target weight. For a blown part, gram weight is the practical control. Ask for the weight tolerance and how it is checked.
Tests that match the use: leak, top-load (stacking), drop, and compatibility with what the container holds.
Tooling ownership. Preform molds, blow molds and core rods are your tooling if you pay for them. Put that in writing; see tooling custody.

Common problems and what causes them

Caps that leak or will not seat. Usually the neck. MD Plastics is direct about it: "A worn neck ring is one of the most common causes of packaging line rejection." On EBM, check for flash or ovality at the finish.
Thin spots and weak corners. Wall thickness depends on how the plastic stretches. Ask for sectioned samples or wall-thickness readings at the corners and base, not just the label panel.
Haze in a container that should be clear. Often a temperature or material issue. Get the clarity standard agreed on a signed sample.
Weight drift between lots. A bottle that runs light has less plastic to carry a stacking load. Put the gram weight on the inspection plan and check it at first article and on every lot.

Where JCH fits

Most products that need a bottle also need injection-molded parts: the cap, a pump body, a measuring scoop, a housing. JCH runs injection molding programs through vetted partner factories, and Jack's engineering team reviews container and closure specs with the buyer before tooling is quoted, so the neck, the cap and the test plan agree on paper first. The injection molding page shows how a program runs, and the molding step covers what happens from mold to first shipment. If you are not sure which process your container needs, send us the drawing and the annual volume.

Straight answers

What is blow injection molding?

The term usually means injection blow molding (IBM). A preform with a finished neck is injection-molded on a core rod, then moved to a blow mold where air inflates the body into a bottle or jar. It is used mostly for small containers that need an accurate neck and thread, such as pharmacy and cosmetic bottles.

What is the difference between blow molding and injection molding?

Injection molding fills a closed steel cavity under high pressure and makes solid parts with tight dimensions on every face, such as caps and housings. Blow molding inflates hot plastic against a mold to make hollow parts, such as bottles and tanks. Blow molds are generally less expensive than injection molds, but the wall thickness of a blown part is less precisely controlled.

What is the difference between injection blow molding and extrusion blow molding?

Injection blow molding starts from an injection-molded preform, so the neck finish is molded and there is no flash to trim. Extrusion blow molding starts from an extruded tube (parison) that the mold pinches off, which leaves flash to trim and a less exact neck, but it suits larger containers and hollow handles.

Which blow molding process is used for PET bottles?

Clear PET bottles such as water and soda bottles are made by injection stretch blow molding (ISBM). The PET preform is reheated, stretched lengthwise by a rod and then blown, which orients the material for strength and clarity.

Can the cap and the bottle come from different suppliers?

Yes, if both are made to the same neck finish standard, for example a 24-410 finish. Name the finish in both RFQs, send the actual closure to the bottle supplier, and ask for fit and leak testing with it.
