Design for manufacturability: what a DFM review checks before the mold is cut

Draft, wall thickness, ribs and bosses, undercuts, gate and parting line, corners and tolerances: what a design for manufacturability review looks at, what each miss costs once the steel is cut, and what to ask for in writing.

Filed under Molds and tooling

Short answer: Design for manufacturability (DFM) means shaping a part so it can be made well and cheaply on the process you plan to use. For an injection-molded part, a DFM review checks draft, wall thickness, ribs and bosses, undercuts, gate and parting line, corners and tolerances before the mold is cut. It is the cheapest point in the whole program to change anything: on a drawing a change costs an hour of CAD time, while on a finished mold it means welding or recutting steel, a new trial, and weeks.

Most of the trouble buyers have with a new molded part was decided before anyone quoted it. A housing designed for a 3D printer, a wall that changes thickness halfway across, a snap clip that needs a moving core in the tool: none of these show up as a problem until the mold exists. Hansen Plastics, a custom molder, says of the defects and costs that surface later: "They are design decisions that were locked in before steel was cut." This note walks through what a design for manufacturability review actually looks at, what each item costs if it is missed, and what to ask for in writing. It pairs with what an injection mold really costs and injection molding defects, where many of these design choices show up as scrap.

Why DFM pays before steel is cut, not after

A mold is a block of hardened steel machined to the negative of your part. Removing steel is a normal toolmaking step; adding it back is not. RJC Mold, a molder that publishes its DFM guide, puts it in one line: "Steel is inexpensive to remove, but expensive to rebuild." That is why experienced toolmakers leave critical dimensions "steel safe" on the first cut, so a later adjustment means taking a little more metal off rather than welding and recutting. A DFM review is the cheapest place to cut NRE before tooling.

The direction is what matters. Hansen says it plainly: "The best time to lower cost is before tooling begins."

For a buyer, DFM is also how you compare quotes. Two suppliers quoting the same drawing can price very different tools because one plans a side action for an undercut and the other proposes a small change that removes it. A DFM report tells you which assumptions sit inside each number. That is a big part of why injection mold quotes vary threefold.

What a DFM review checks on a molded part

Draft. Faces that run in the direction the mold opens need a slight taper, or the part drags on the steel and sticks. Protolabs' draft guidance is a useful reference: "0.5 degrees on all vertical faces is strongly advised. 1 to 2 degrees works very well in most situations. 3 degrees is minimum for a shutoff (metal sliding on metal)." Texture needs more, because the texture itself grips the part: "3 degrees is required for light texture (PM-T1). 5 or more degrees is required for heavy texture (PM-T2)." The same page names the most common source of missing draft: "Ignoring draft early in the design process is a common mistake that occurs when prototyping with 3D printing and CNC machining processes where draft is not required." If your prototype was printed or machined, assume the draft review will find work to do.

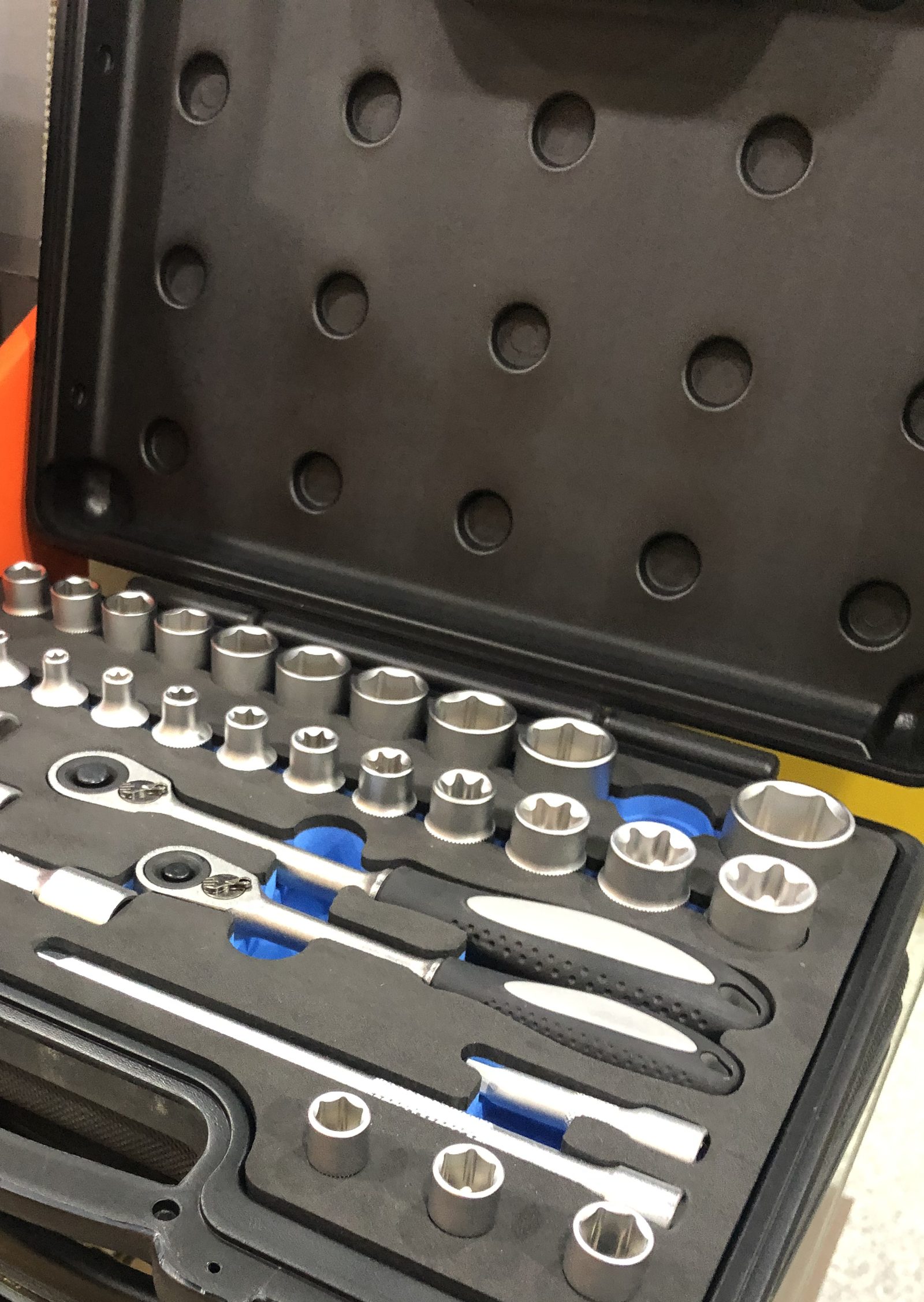

Wall thickness. A molded part wants one nominal wall, kept as even as possible. Thick sections cool last and pull inward as they shrink. Protolabs: "Parts that are too thick result in unsightly sink, warp and internal voids (pockets of air)." Thick walls also cost money every shot, because cooling time drives cycle time. Hansen notes that "Thick sections cool slower, increase cycle time, and create sink or internal stress." The usual fix is to core out thick areas and add ribs for stiffness instead of mass.

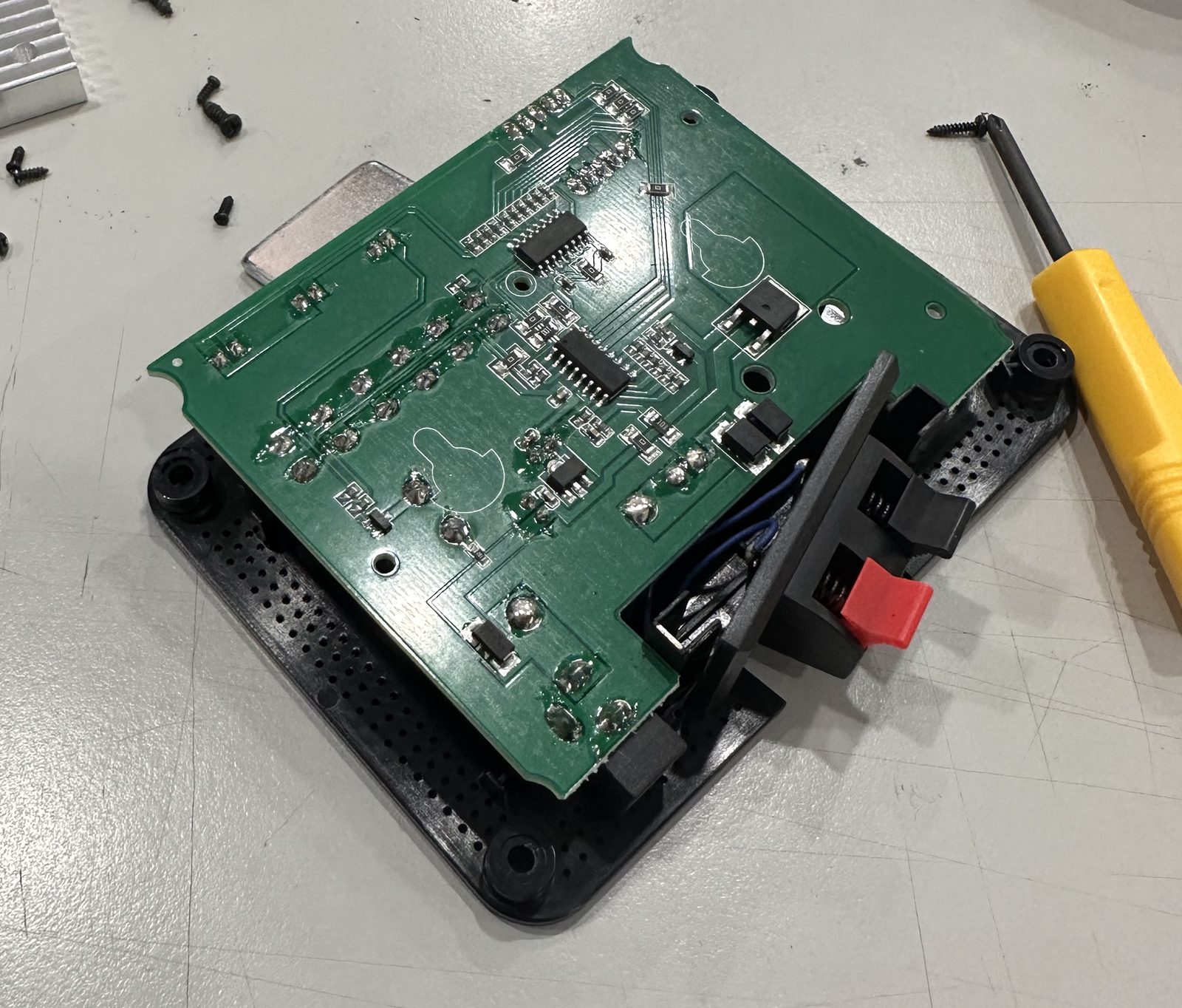

Ribs and bosses. Ribs add stiffness and bosses take screws, and both cause sink marks on the show face if they are too thick where they meet the wall. Guidance varies a little by source and resin. Protolabs recommends "a rib-to-wall thickness ratio of 40 to 60 percent the thickness of adjacent surfaces"; Texas Injection Molding gives the same kind of limit for screw bosses: "Boss outer wall should be no greater than 60% of nominal wall." The review should flag every rib and boss over the ratio and note which faces are cosmetic, because a sink mark inside a housing may not matter while one on the front face will fail inspection.

Undercuts, gate, parting line and corners

Undercuts. Any feature that stops the part coming straight out of the mold is an undercut: a side hole, a snap hook, a thread, a groove. The mold then needs a slide or lifter that moves sideways before the part ejects. A side hole can often become a slot that opens in the pull direction; a snap can sometimes be formed with a pass-through core instead of a lifter.

Gate and parting line. The gate is where plastic enters the cavity, and it leaves a mark. The parting line is where the two mold halves meet, and it leaves a line. Both have to go somewhere, so the review should name the faces that must stay clean and agree where the marks may sit. Gate position also decides where flow fronts meet, which is where knit lines form; those are weak spots as well as cosmetic ones. Moving a gate on a drawing is free; moving it on a mold is a steel change.

Corners. Sharp inside corners concentrate stress and disturb flow. Texas Injection Molding's rule: "Add inside corner radii of at least 0.5× the wall thickness wherever possible." Radii also help the plastic fill and the part release.

Tolerances and material

Molded parts shrink as they cool, and each resin shrinks by a different amount, so tolerances that are routine for a machined part can be costly or impossible for a molded one. Texas Injection Molding states that "Standard injection molding achieves ±0.005 inches (±0.127 mm) on most features without special effort." Tighter tolerances are possible on the dimensions that matter, but each one adds tool tuning and inspection. A useful review marks the few critical dimensions (mating features, sealing faces, anything that holds another part) and asks whether the rest can open up. Our note on precision injection molding covers how to specify the tight ones.

Material belongs in the same conversation. A glass-filled resin shrinks differently along and across the flow, which can change both the tolerances you can hold and whether the part warps. Choosing the resin after the tool is built is a common way to end up recutting it.

What to ask for, and what a good DFM report looks like

A DFM review is only useful if it is written down and tied to the drawing revision it reviewed. Ask for:

• A list of every issue found, each with a location on the part, the reason it matters (sticking, sink, warp, extra tool action, cosmetic mark, tolerance risk) and a suggested change.
• Draft, wall and rib findings marked on the model or on screenshots, not described in general terms.
• The number of slides and lifters the tool will need as drawn, and as changed.
• Proposed gate and parting-line positions, with the cosmetic faces you named.
• The critical dimensions the supplier will hold, and any it proposes to open up.
• The resin assumed, and whether a change of grade would change the answers.

Then decide each item: accept the change, reject it, or accept the cost of keeping your design. That record is what the first article inspection is later checked against, and it settles arguments about who pays when the first shots show a problem the review predicted.

How JCH runs a DFM review

At JCH, Jack Cheng handles CAD, design for manufacture, cavity layout and piece-price math before any steel is cut at vetted partner factories. A sample, a sketch, a drawing or a photograph is enough to start. Our free DFM review covers one part: you book a 15-minute call, upload the part on a private prep page (with a mutual NDA first if you want one), and Jack reads it before the call. He covers draft and wall thickness, undercuts and mechanisms, gate, parting line and cosmetics, material and process, the tolerances that cost money, and the tooling path with a rough piece-price range where the files allow, then follows up in writing.

If you already know you are heading to tooling, see how we build injection molded parts and the mold step of our process, or run your own numbers first in the tooling cost estimator.

Straight answers

What is design for manufacturability (DFM)?

Design for manufacturability is the practice of shaping a part so it can be made reliably and at the lowest cost on the process you plan to use. For an injection-molded part, a DFM review checks draft, wall thickness, ribs and bosses, undercuts, gate and parting line, corner radii, tolerances and material before the mold is built.

When should a DFM review be done?

Before the mold is cut, ideally while quotes are being collected. Changes on a drawing cost CAD time; changes on a finished mold mean machining or welding steel, a new trial and lost weeks.

How much draft does an injection-molded part need?

Protolabs advises 0.5 degrees on all vertical faces, says 1 to 2 degrees works well in most situations, and calls for 3 degrees minimum on a shutoff. Light texture needs about 3 degrees and heavy texture 5 or more.

How thick should ribs be compared with the wall?

A common guideline is 40 to 60 percent of the adjacent wall thickness. Thicker ribs tend to cause sink marks on the opposite face. The exact limit depends on the resin and on whether that face is cosmetic.

Why do undercuts make a mold more expensive?

An undercut stops the part from coming straight out of the mold, so the tool needs a slide or lifter that moves sideways before ejection. That adds machining, moving parts and maintenance.
