Automotive injection molding: IATF 16949, PPAP, materials, and what a buyer really needs

Same presses, heavier proof. When IATF 16949 and PPAP apply, what the package contains, how the resin is chosen, and the lighter approval package an aftermarket brand should ask for instead.

Filed under Molds and tooling

Short answer: Automotive injection molding is ordinary injection molding held to a much heavier paper trail. A part that goes into a vehicle on the assembly line usually has to come from an IATF 16949 certified site and be approved through PPAP, the Production Part Approval Process, before the first production shipment. A part sold as an aftermarket accessory usually does not, but the buyers who do well borrow the same tools anyway: a ballooned drawing, a dimensional report, material certificates and a locked process. The first question to settle is not the resin or the steel. It is which of those two buyers you are.

Automotive injection molding covers everything from a clip that holds a door panel to a glass-filled nylon bracket that lives next to the engine. The molding machines are the same ones that make toys and housewares. What changes is the evidence the buyer expects before, during and after production. This note walks through that evidence: what IATF 16949 is and is not, what a PPAP package contains, how material choice works for car parts, and what to put in a request for quote so the molder prices the right job. For the general picture of the process, start with our injection molding page.

Production part or aftermarket accessory: the question that sets the paperwork

There are two very different automotive plastics buyers.

• The production supplier. You sell to a vehicle maker or to a Tier 1 or Tier 2 supplier, and the part is built into new vehicles. Your customer will set the quality system, the approval process and the material specification. You will usually be told to supply through an IATF 16949 certified site and to submit PPAP at a stated level.
• The aftermarket or accessory brand. You sell floor trays, organizers, mounts, trim covers, lighting housings or replacement clips to drivers and retailers. Nobody hands you a PPAP manual. You decide how much proof you want from the factory, and you carry the warranty returns if the part fails in a hot car.

Most of the expensive mistakes we see come from mixing the two up. An accessory brand that demands full production-grade approval pays for paperwork nobody reads. A startup that wins a Tier 1 order and quotes it like an accessory finds out at the first submission that the tool, the gauges and the process records were never set up to pass.

IATF 16949: what the certificate covers

IATF 16949 is the automotive quality management standard. The current edition, IATF 16949:2016, is the one the IATF describes as the edition "which cancels and replaces ISO/TS 16949:2009 (3rd edition)". It is built on top of ISO 9001, "meaning it cannot be implemented as a standalone standard". A site cannot hold IATF 16949 without meeting ISO 9001 as well.

Two things about it matter to a buyer.

First, its emphasis. Wikipedia's summary of the standard puts the intent in one line: "The focus is not on the discovery, but on the avoidance of errors." That is why IATF sites run the "core tools": APQP for planning, FMEA for risk, MSA for gauges, SPC for process control and PPAP for approval. An ISO 9001 shop may do some of these. An IATF 16949 shop is audited on all of them.

Second, its scope. "The standard is strictly site-specific, which means certification is granted only to locations where value-added manufacturing processes like assembly, heat treatment, welding, or painting actually take place." A trading company, a sales office or a design center cannot hold the certificate on its own. Ask for the certificate of the plant that will run the press, check that the address on it matches the plant you are buying from, and check it against the certificate validity search on the IATF Global Oversight website. A certificate from a sister plant down the road does not cover your part.

PPAP: what the package contains and which level to ask for

PPAP is the approval step between "the tool is finished" and "ship production." Its purpose, in Wikipedia's words, is "establishing confidence that a supplier's production processes can consistently produce parts meeting customer requirements". The AIAG PPAP manual lists 18 elements. For a molded plastic part the ones that do the real work are:

• Design record: the drawing, with every feature numbered ("ballooned") so each one has a measured result.
• Process flow, PFMEA and control plan: what happens at each step, what can go wrong there, and how each risk is checked in production.
• Measurement system analysis: proof that the gauges and fixtures can actually measure the tolerances on the drawing.
• Dimensional results: every ballooned feature, measured. "Usually a minimum of 6 pieces is reported per product / process combination." For a multi-cavity tool, each cavity counts as its own process stream, so plan on parts from every cavity.
• Material and performance test records: resin certificates and the test results the material specification calls for.
• Initial process studies: capability data on the characteristics marked as critical.
• Appearance approval: for visible parts, a signed record of color, gloss and texture.
• Part Submission Warrant (PSW): the one-page summary that both sides sign.

The submission level decides how much of that goes to the customer. The common default is "Level 3 – PSW with product samples and complete supporting data." Lower levels send less; Level 5 means the evidence is reviewed at the supplier's plant. PPAP is also not one and done. Production suppliers have to resubmit "whenever a new or modified component is introduced to production, or the manufacturing process is changed". That includes moving the tool to another press or another factory, which is why a mold transfer on an automotive part is a requalification project, not a shipping job.

The most useful line in the whole Wikipedia entry is practical: "It is a good practice to ask the customer for PPAP expectations before even quoting for a job." The level, the customer-specific requirements and the number of sample parts all change the price of the tool and the first-shot timeline.

Materials: the resin follows the location in the vehicle

Car parts see heat, sunlight, fuel, cleaning chemicals and years of vibration, so the material is usually chosen by where the part sits. As a rough map:

• Interior trim and consoles: polypropylene compounds, often talc-filled for stiffness, and ABS or PC/ABS where the part needs a better surface or more impact strength.
• Exterior and sun-exposed parts: grades with UV stabilization, or weather-resistant resins such as ASA, because standard ABS fades and chalks outdoors.

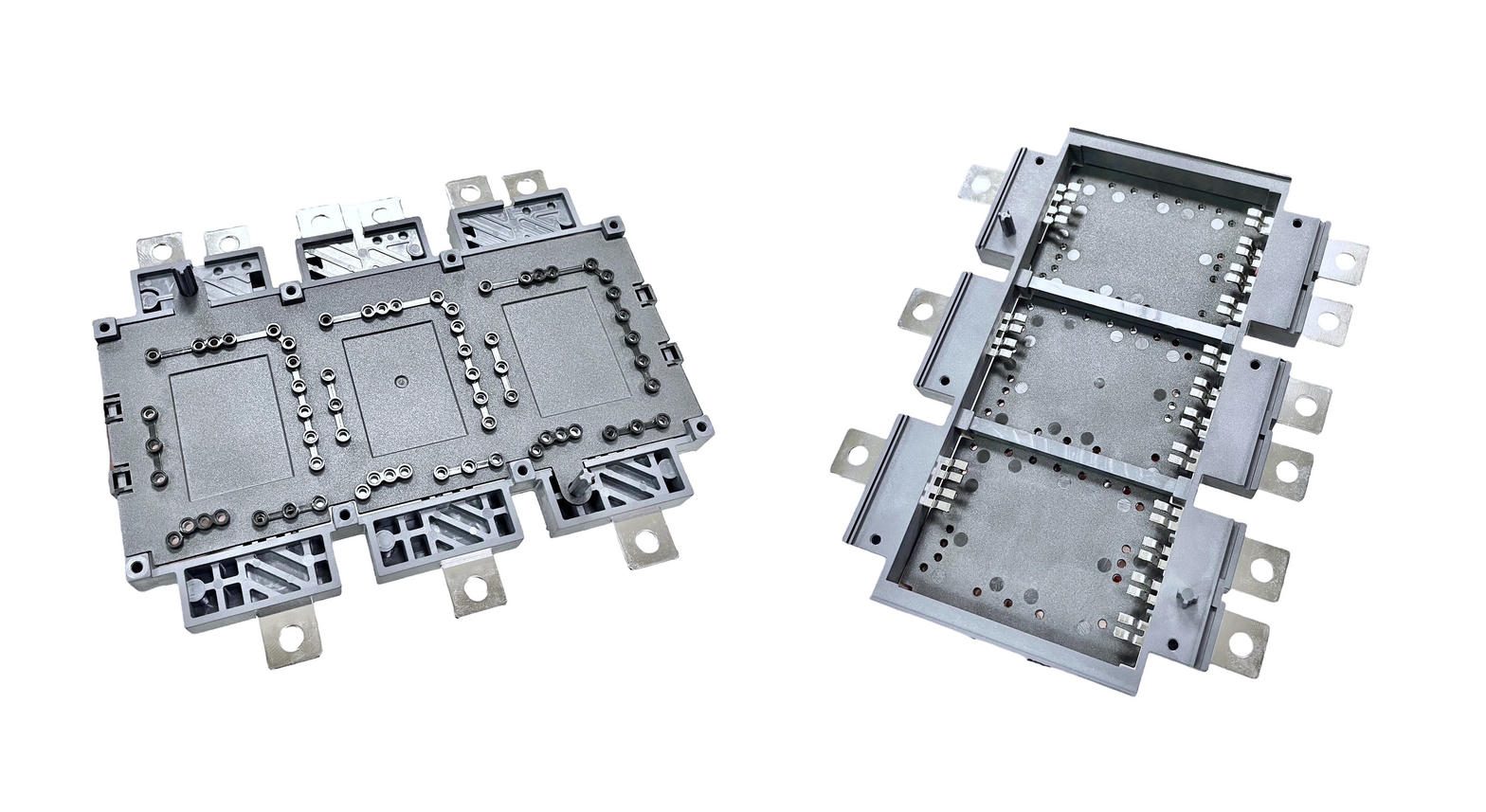

• Under-hood brackets, housings and connectors: glass-filled nylon (PA6 or PA66) and other engineering resins that hold their shape when hot.
• Clips, latches and small gears: acetal (POM) and nylon, chosen for stiffness, low friction and fatigue life.

On a production program the vehicle maker's material specification names the exact grade, sometimes down to the resin supplier, and the molder may not substitute. On an accessory program you choose. Choose a named grade from a named resin maker, write it on the drawing, and ask for the certificate of analysis with every lot. A "PP equivalent" from the cheapest bag on the floor is how one lot of trays warps in a parked car in July while the previous lot did not.

Interior parts bring one federal test into the conversation. FMVSS 302 is the US flammability standard for occupant compartment materials. Its text says "This standard applies to passenger cars, multipurpose passenger vehicles, trucks, and buses." The requirement is that the material "shall not burn, nor transmit a flame front across its surface, at a rate of more than 102 mm per minute." The vehicle maker certifies the vehicle, so on a production program the requirement flows down through its material specification. Accessory brands selling interior products often ask their factory to have the material tested to the same method anyway: it is a known, inexpensive lab test, and a retail buyer may ask for it.

Material reporting: IMDS

Production suppliers usually also report what their part is made of. The International Material Data System is the automotive industry's shared database for this, and "Data entry in IMDS is frequently a contractual requirement of PPAP which is one part of standard automotive quality systems". The basic web version is "provided free of charge to suppliers in the automotive supply chain". In practice the molder enters the resin, the colorant and any inserts, and the data travels up the chain to the vehicle maker. Build the time for it into the PPAP schedule; a part cannot be approved while its material data is missing.

Tooling for automotive volumes

Automotive programs run for years, so tooling decisions lean toward durability. Expect the molder to quote hardened steel for high-volume parts, to price spare inserts for wear areas, and to ask how many cavities the annual volume needs. A checking fixture that holds the part the way the vehicle does, and measures it with simple go/no-go features, is often part of the tool quote. Our notes on what an injection mold really costs and who owns the mold apply here with one addition: on a production program, the vehicle maker or Tier 1 may own the tool outright and tag it as their property.

A design for manufacturability review before steel is cut matters more on automotive parts than almost anywhere else, because every change after PPAP approval means a new submission.

What to put in an automotive RFQ

A request for quote that a molder can price accurately covers eight points:

1. The buyer type: production supply to a named tier, or aftermarket and accessory.
2. Quality system required: IATF 16949 site, ISO 9001 site, or no stated requirement.
3. PPAP level and customer-specific requirements, or for accessories, the approval package you expect instead (see below).
4. Material: exact grade and color, or the vehicle maker's material specification number.
5. Required tests: flammability, weathering, heat aging, chemical resistance, as the specification lists them.
6. Annual volume and program life, which set the steel, the cavity count and the spare inserts.
7. Drawing with critical characteristics marked, so the molder knows which dimensions need capability data.
8. Packaging: returnable dunnage or cartons, labels and the counting unit.

For an accessory program, a sensible approval package is a scaled-down PPAP: a ballooned drawing, a dimensional report on parts from every cavity, the resin certificate, a signed appearance sample, and the process settings the samples were made on. That is close to what our first article inspection note describes, and it costs a fraction of a full submission.

Where JCH fits

JCH manages molding programs for US product companies through a vetted partner factory network. That network includes facilities certified to IATF 16949 and ISO 9001, and we match each program to a partner holding the certification it requires; the certifications page lists what is available. JCH itself is not the certificate holder, and we will tell you which plant is. For accessory and aftermarket programs, Jack's engineering team runs the approval package described above before production is released. The molding step shows where tooling, sampling and approval sit in a program, and the mold cost estimator gives a first tooling range before you send drawings. Send us the drawing and tell us which kind of automotive buyer you are, and we will tell you what the job really requires.

Straight answers

What is automotive injection molding?

Automotive injection molding is the production of plastic vehicle parts, such as trim, clips, brackets, housings and connectors, by injecting molten resin into a steel mold. The process is the same as other injection molding; the difference is the quality system and approval evidence the automotive supply chain requires, usually an IATF 16949 certified site and PPAP approval for parts built into new vehicles.

Do aftermarket automotive parts need PPAP?

Usually not. PPAP is required by vehicle makers and their Tier 1 and Tier 2 suppliers for production parts. Aftermarket and accessory brands set their own approval requirements. Many use a scaled-down package: a ballooned drawing, a dimensional report on every cavity, resin certificates, a signed appearance sample and the recorded process settings.

What is the difference between IATF 16949 and ISO 9001?

IATF 16949 is the automotive quality management standard. It is built on ISO 9001 and cannot be used without it, and it adds automotive requirements such as the core tools APQP, FMEA, MSA, SPC and PPAP. IATF 16949 certification is granted to manufacturing sites, so the certificate must cover the plant that makes the part.

What PPAP level is standard?

Level 3 is the common default: the Part Submission Warrant with product samples and complete supporting data. The customer can specify a different level, from Level 1 (warrant only) to Level 5 (complete data reviewed at the supplier's plant).

What plastics are used for automotive parts?

Polypropylene compounds and ABS or PC/ABS are common for interior trim, UV-stabilized grades and ASA for sun-exposed exterior parts, glass-filled nylon for under-hood brackets, housings and connectors, and acetal (POM) for clips, latches and small gears. On production programs the vehicle maker's material specification names the grade.
