Low volume injection molding: tooling options, lead times, and what drives the quote
Real molded parts from a cheaper, faster tool: the middle step between prototypes and a production mold. Here is what each kind of tool gives up, and what to pin down before you order one.
Filed under Molds and tooling
Short answer: Low volume injection molding means making real molded parts, in production plastic, from a cheaper and faster tool built for hundreds to a few thousand shots instead of hundreds of thousands. You give up some tool life, cosmetic finish and cycle speed. You get parts in weeks, a smaller capital bet, and the chance to fix the design before you pay for a production mold.

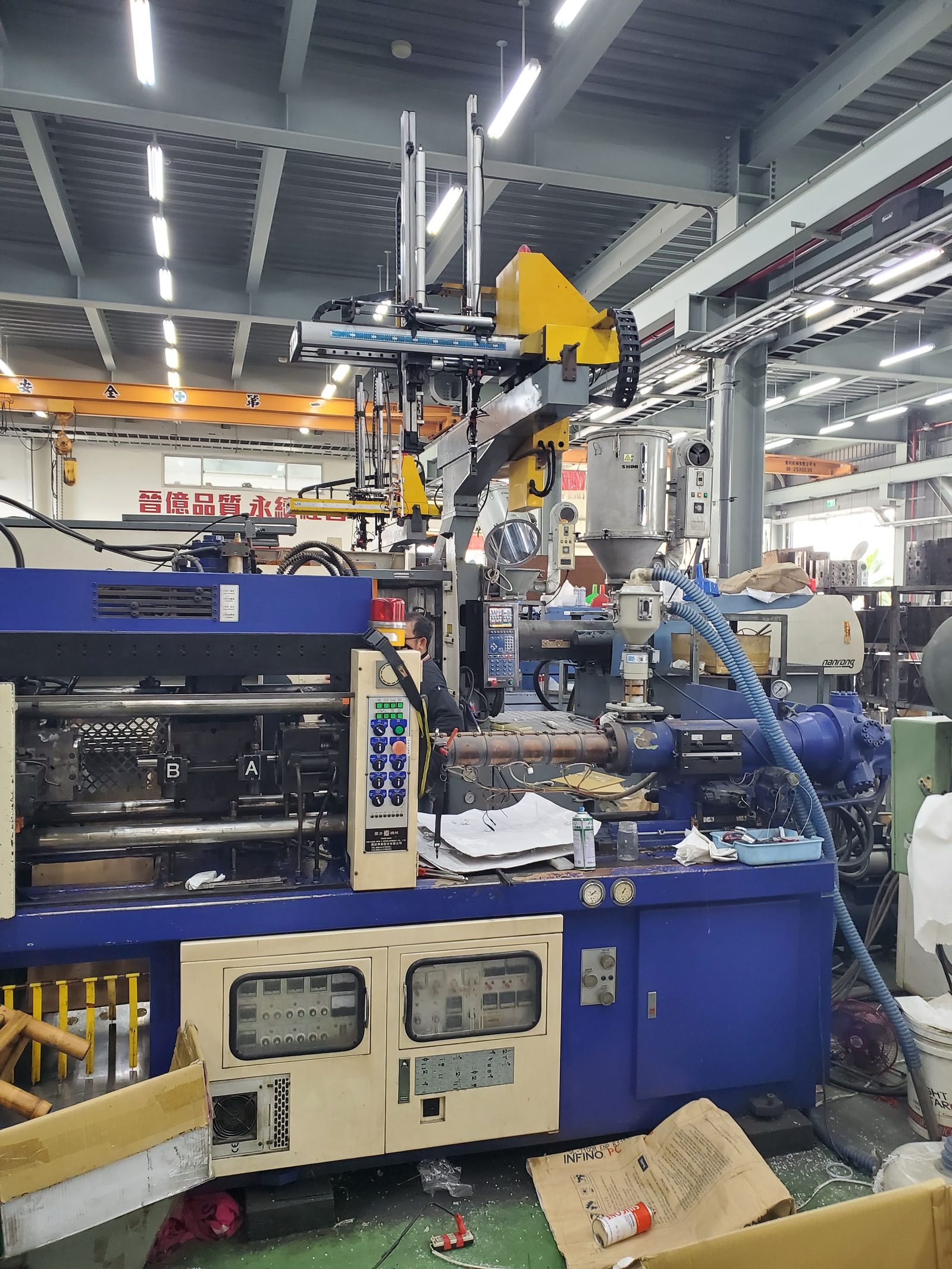

Low volume injection molding is the middle step most hardware products need and few buyers plan for. Prototypes from a printer or a urethane casting prove the shape. A full production mold proves the price. In between sits a run of a few hundred to a few thousand real molded parts, used for pilot builds, certification samples, a first retail order, or a product whose demand nobody can forecast yet. This note covers what counts as low volume, the four kinds of tooling used for it, what you trade away, what drives the quote, and when to move to a production tool.
What counts as low volume injection molding
There is no single cut-off, but the published ranges agree on the order of magnitude. Fictiv's low-volume injection molding guide describes it as "a fast and efficient way to produce plastic parts in volumes from 100 to 10,000 pieces." Below that, a mold rarely pays for itself against casting or printing. Above it, a production tool with more cavities usually wins on part price.
The industry's own tool classes point the same way. The SPI mold classes, summarized in Fictiv's note on injection molding tooling life, put Class 104 molds at "fewer than 100,000 production cycles" and Class 105 at "fewer than 500 cycles," designed "for prototyping rather than production runs." A low volume tool is usually built to one of those two classes, and the class should be written on the quote.
Four ways to build a low volume tool
Aluminum molds. Aluminum machines fast and is the classic bridge tool. Protolabs, which runs its on-demand molding on aluminum tooling, presents it as a way to make end-use parts and "as a bridge before committing to a capital expense with steel tooling." The limits are wear, fine detail and abrasive resins. Fictiv notes that "aluminum molds support tolerances down to +/- 0.005 inches," which is enough for many housings and not enough for a tight snap fit or a sealing face.

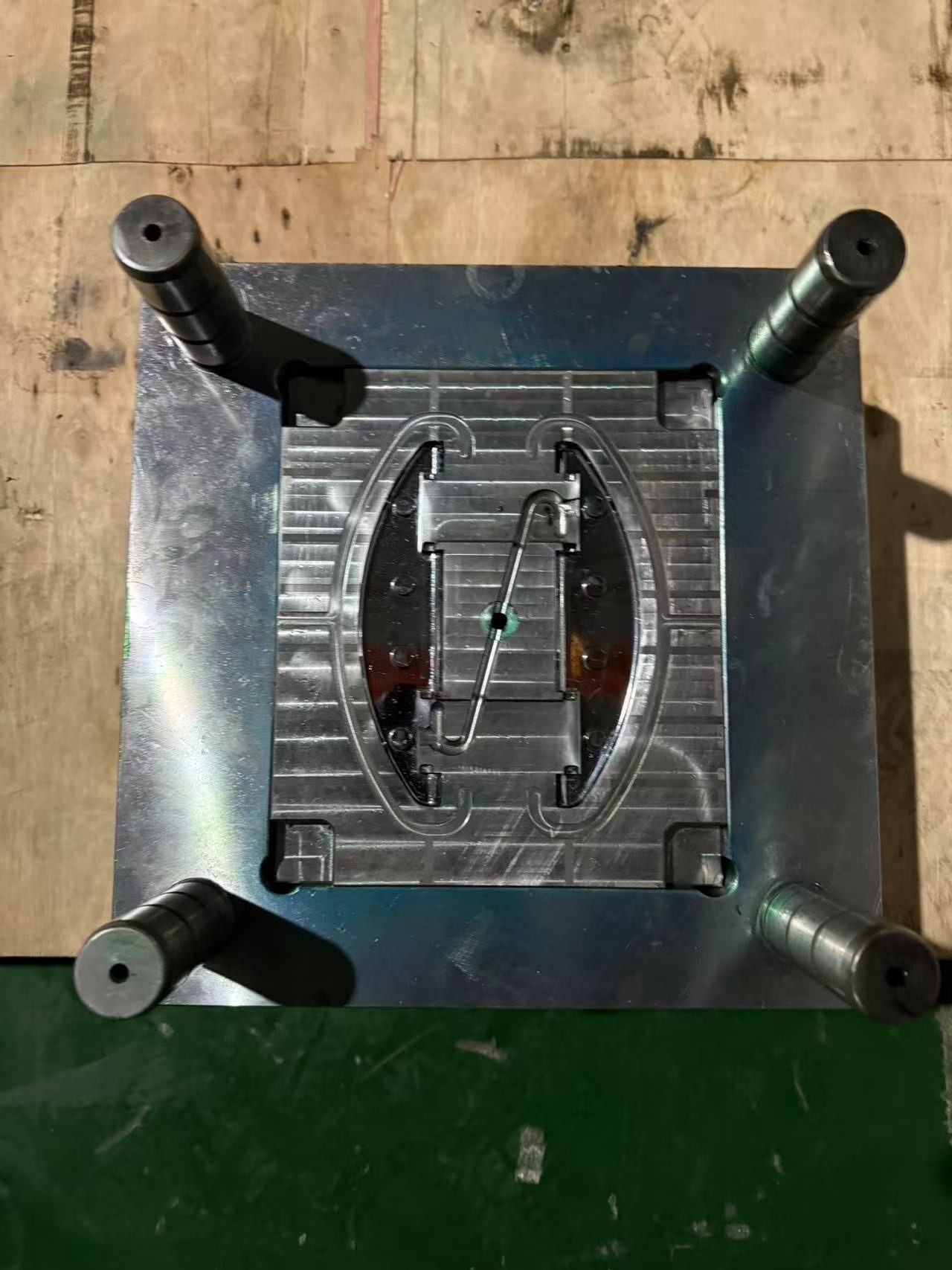

Soft or pre-hardened steel, single cavity. P20 and NAK80 are the usual choices. Fictiv says most of its customers "begin with a single-cavity tool made of P20 or NAK80 steel instead of aluminum," and that these tools "are generally ready in less than two weeks." Steel costs more to cut than aluminum, but it holds detail and finish better and takes repairs and design changes more gracefully.
Inserts in a standard frame. A molder with a quick-change frame only has to build the cavity and core inserts. DME describes its Master Unit Die as "an interchangeable modular mold base system" in which "the frame remains in the molding machine while the inserts are changed at will." For the buyer, the point is cost: you pay for the inserts, not a full mold base. The catch is ownership. The frame belongs to the molder, so moving the job later means building a base around your inserts.
3D printed molds. For tens to a few hundred parts in easy resins, a printed mold can be enough. Formlabs' guide to low-volume injection molding says users "are usually injecting 100s of parts in easy-to-process plastics such as TPE, PP, and PE," and warns that with "PA or PC, the 3D printed mold might have a shorter lifespan." It is a fast way to test a part in its real material, not a supply plan.
| Tool type | Typical use | Watch for |
|---|---|---|
| Printed mold | Tens to a few hundred parts in easy resins | Short life in hot or filled resins |
| Aluminum | Bridge runs and early production | Wear, finish, abrasive resins |
| P20 / NAK80 single cavity | Pilot runs to low thousands, design still settling | Higher cost than aluminum |
| Inserts in a molder's frame | Lowest tool cost | You own inserts, not a whole mold |
What you trade away
A low volume tool is cheaper because it leaves things out. Know which ones before you approve the design review.
- Cycle time. One cavity and simpler cooling mean fewer parts per hour, so the piece price is higher than it will be from a production tool.
- Side actions. Undercuts that a production mold handles with slides may be done with hand-loaded inserts in a low volume tool. That works, but it adds labor to every shot.
- Finish. Protolabs points out that a high polish such as SPI-A2 "requires mold cavity surfaces to be hand-polished," which "drives up the cost of mold manufacturing and increases lead-time." On a bridge tool, ask for the cheapest finish the part can live with.
- Tool life. If the run grows, a Class 105 tool will not keep up. Agree in writing what happens when it wears out.
What drives the quote
Low volume quotes vary for the same reasons production quotes do, only more so, because the tool is a bigger share of the total. The three-fold quote spread usually comes down to tool class, cavity count, side actions, finish and resin. Ask every shop to quote the same class, the same cavity count and the same finish, or the numbers will not compare. The one-time items (tool, fixtures, first article) are NRE and should sit on their own lines, apart from the piece price.
Two lines buyers often miss:
- Inspection of the first shots. Protolabs, for example, inspects "the first three shots from the tool" on a CMM and provides "a three-part First Article Inspection (FAI) report, and a 30-part Process Capability Report" when critical features are called out. Whatever shop you use, ask what first-article evidence is included and what costs extra.
- Minimums per run. A small tool does not always mean a small order. Ask the molder for the minimum per setup, because press setup time is charged whether you order 200 parts or 2,000. Our note on minimum order quantity covers what is negotiable.
When to move to a production mold
The run itself tells you. Fictiv makes the point that during a low volume run "an injection molder can identify and resolve any tooling-related issues that require part design changes." Use those parts. Measure them, assemble them, ship some to customers, and change the design while changes are cheap. Then move when three things are true: the design has stopped changing, the forecast is high enough that a multi-cavity tool's lower piece price pays back its cost, and the bridge tool is near the end of its class life.
Before the move, settle who owns the bridge tool and the CAD, and whether the production mold will be built from the same steel-safe design. Our notes on what an injection mold really costs and how an injection mold is built cover the production side.
How JCH runs a low volume molding job
Jack sets up low volume molding for US companies with tool shops and partner molders. He settles the tool class, cavity count, finish and resin before quotes go out, so they compare like for like, and he puts tool ownership and the first-article plan in writing before steel is cut. The steps are laid out on the mold and molding process pages. If you have a part that needs a few hundred or a few thousand pieces, send the drawing.
Straight answers
What is low volume injection molding?
Low volume injection molding is making molded parts in production plastic from a tool built for a short life, typically hundreds to around ten thousand parts. The tool is usually aluminum, single-cavity P20 or NAK80 steel, inserts in a molder's standard frame, or for very small runs a 3D printed mold.
How many parts count as low volume?
Published ranges run from about 100 to 10,000 pieces. The SPI mold classes put Class 105 prototype tools at fewer than 500 cycles and Class 104 low-production tools at fewer than 100,000 cycles.
Is aluminum or steel better for a low volume mold?
Aluminum is fast to machine and suits bridge runs in non-abrasive resins. Pre-hardened steel such as P20 or NAK80 costs more but holds detail, finish and tolerances better and takes design changes more easily. The choice depends on resin, tolerance, finish and how many parts the tool must make.
Who owns a low volume mold?
It should be the buyer who paid for it, and that should be written into the purchase order. If the molder builds inserts for its own quick-change frame, you own the inserts but not the frame, so moving the job means building a new mold base.
When should I move from a bridge tool to a production mold?
Move when the design has stopped changing, the forecast is high enough that a multi-cavity tool's lower piece price pays back its cost, and the bridge tool is close to the end of its rated life.
