Two-shot molding vs overmolding: which does your part need?

Both put a soft layer on a rigid part. One uses two ordinary tools, the other one complex tool and a two-barrel press. Volume decides most of it; the bond decides whether the part survives.

Filed under Insert molding and overmolding

Most soft-touch parts are two materials: a rigid body that carries the load and a rubbery layer over it for grip, sealing or feel. There are two common ways to join them in the mold, and suppliers do not use the words consistently. Formlabs notes that overmolding "is sometimes referred to as two-shot molding because it is a two-step process." That loose usage is how a buyer ends up comparing a quote for one process against a quote for the other. This note separates the two, shows where each one makes sense, and lists what to settle before you ask for a price.

The two processes, in plain terms

Overmolding (also called pick-and-place overmolding) is two separate jobs. The rigid substrate is molded in one tool on a standard press. The finished substrate is then loaded into a second tool, and the soft material is injected over it. Fathom (ICOMold) describes the transfer as happening "either manually, robotically, or automatically." At Protolabs, the substrate parts "are placed by hand" into the second mold.

Two-shot molding (also called 2K or multi-shot molding) does both materials in one machine cycle. The press has two independent injection units, and the tool moves the half-finished part, usually by rotating, from the first-shot cavity to the second-shot cavity, where the second material goes in against it. As Fictiv puts it, the mold "must allow both stages of the part to be molded in the same tool."

Insert molding is the close cousin: a metal part such as a threaded nut, a pin or a contact is placed in the tool and plastic is molded around it. It uses the same place-then-mold logic as overmolding, with metal in place of a molded substrate. Jack's partner lines run all three (inserts such as nuts and pins, overmolding, and two-shot), which is covered on the insert molding and overmolding page.

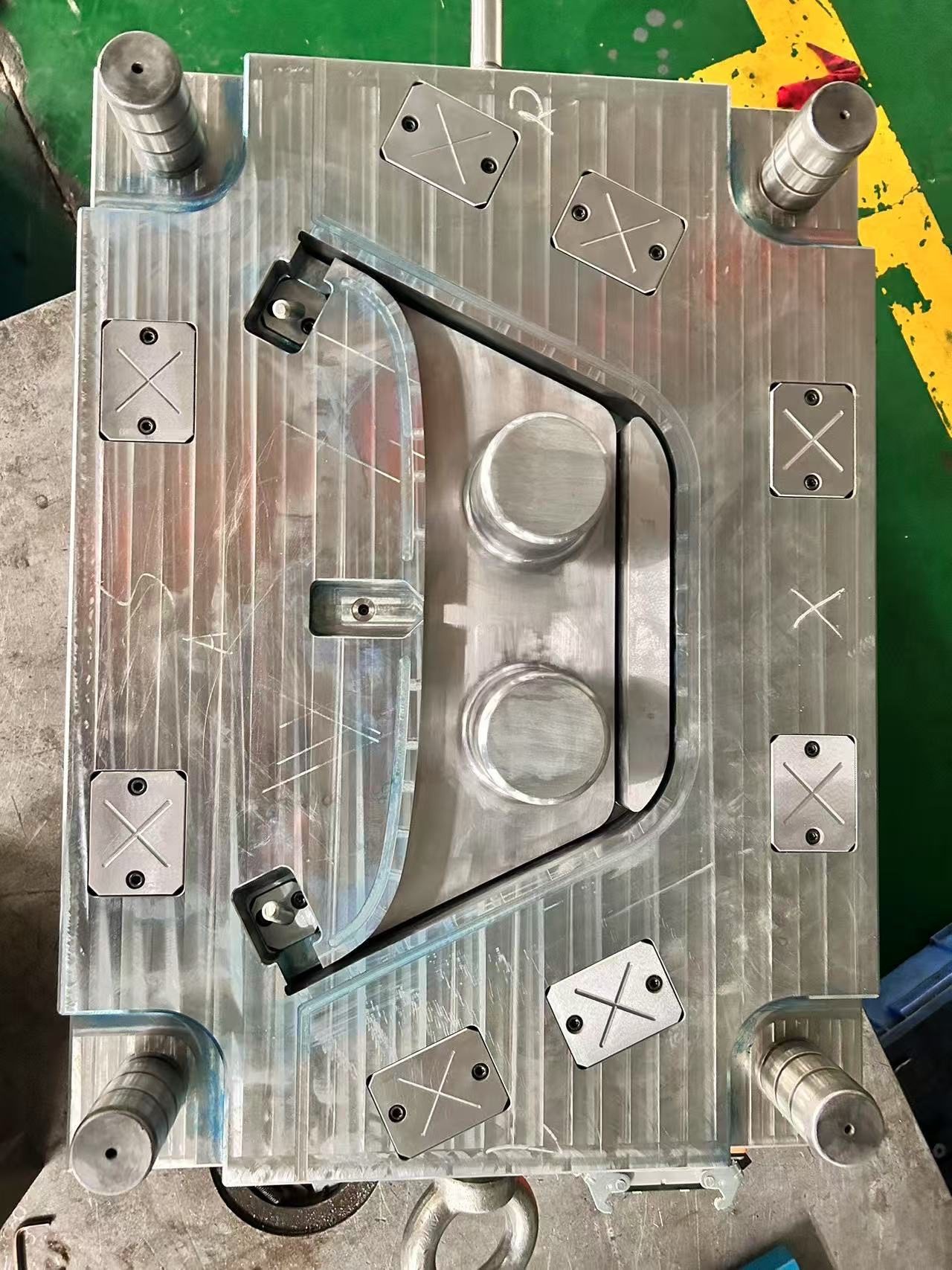

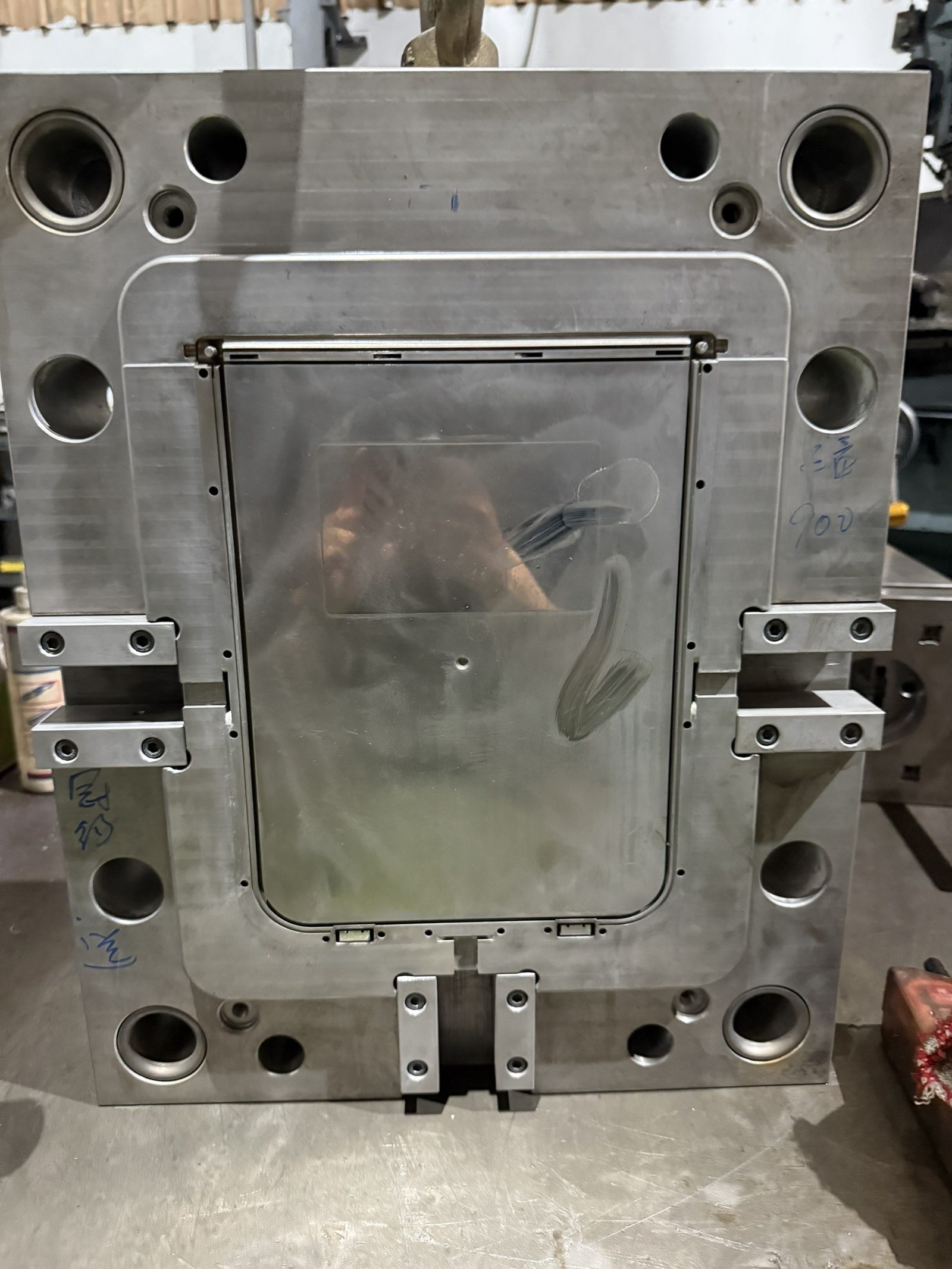

Tooling and machine cost: where the money goes

Overmolding needs two conventional tools that run on conventional presses. Two-shot needs one more complex tool, with two sets of cavities plus the mechanism that moves the part between them, and a press with two injection units. SyBridge Technologies: "the initial two-shot mold costs can be high and the two-shot molding machine is more expensive than a standard injection molding machine."

What two-shot buys back is labor. Nobody loads substrates, and a separate assembly step goes away. SyBridge's point is that the higher upfront cost is "often offset by labor savings and assembly costs on large production runs."

There is no honest single price for either process. Tool cost depends on part size, cavity count, steel and mechanisms, which are set out in what an injection mold really costs. Jack's position is the same: the tooling number depends on the detail of the tool, and he will not put a figure on it before he has seen the part.

Volume decides more than anything else

The published guidance lines up. Fictiv: "Choose overmolding if the quantity is not too high—only a few thousand or ten thousand—to save some money on molds. If your program requires quantities of 500,000 or more, the more cost-effective process is two-shot injection molding." SyBridge says the same in fewer words: two-shot "usually only makes sense for larger production runs, whereas overmolding is better for low volume production runs."

Between those two marks is a judgment call. It turns on labor cost per part, cycle time and how many years the part will run.

On minimums, Jack's rule for his lines is that a single-cavity tool usually starts from about 500 to 1,000 parts; a multi-cavity tool needs more, or you pay a machine fee for a short run. On the floor, some second shots are loaded by hand, some are semi-automatic and some are fully automatic, which is the practical middle ground between the two textbook processes. For the general logic of minimums, see minimum order quantity: what is really negotiable.

Will the two materials stay together?

This is the question that sinks two-material programs. The bond comes from chemistry and from geometry. Some material pairs fuse at the interface; others barely stick and rely on shape. Protolabs: "Chemical bonding between overmolded materials is possible, but material compatibility should be considered," and "Incorporation of an adequate mechanical bond is strongly recommended if bonding is critical to your application."

In practice:

• Pick a matched pair. TPE and TPU grades are sold for bonding to specific substrates such as PC, ABS, PP or nylon. A grade that bonds well to PP may not bond to PC. Ask for the datasheet that names your substrate.
• Design in a mechanical lock. Through-holes, undercuts, grooves or a textured surface that the soft material flows into. Fathom (ICOMold) notes that designers "often must add mechanical features such as undercuts, grooves, or textured surfaces that help lock the overmold in place."
• Test the bond, not just the look. A grip that looks right at first article can peel after a summer in a hot truck. Jack's partner line has a pull and peel test machine for this, and the result belongs on the first-article report.

The rigid materials Jack runs most are PC, PP and ABS, with TPE and TPU as the soft layer and nylon at times. Past overmolded work includes hand tool and power tool grips and phone cases.

Design rules that save a tool change

Xometry's guidance for soft overmolds: "Wall thicknesses between 0.060\" to 0.120\" (1.5 mm-3 mm) generally provide the best bonding," keep corner radii at 0.5 mm minimum, and "TPE/TPV overmolds should be less thick than the substrate to prevent warpage, especially if the part is flat, long, or both." Three more that come up on most jobs:

• Shut-offs. The soft material has to stop somewhere. The line where it meets the rigid part should be a crisp step the tool can seal against, not a feathered edge that flashes.
• Draft. Soft materials grip the steel. Protolabs Network (Hubs) recommends draft angles to aid ejection, "reducing the risk of damage during demolding."
• Similar melt temperatures. Hubs again: choose materials "that bond well together and have similar melting temperatures." A second shot that runs much hotter than the substrate can distort it.

Prototype first, then commit

Because overmolding uses conventional tools, it is the usual way to prove a two-material design before paying for a two-shot tool. RapidDirect lists prototype molds good for "1,000 to 5,000 shots" and a lead time from mold making to sample delivery of "15-45 business days." Protolabs quotes overmolded parts "in as fast as 15 days." Run the prototype, peel-test the bond, drop-test the part, and only then decide whether the volume justifies a 2K tool.

What to send for a quote

1. CAD for the rigid part and the soft layer, with the shut-off line marked.
2. Materials: substrate grade, soft-layer grade and hardness (Shore A), and colors.
3. Annual volume and expected product life. This is what decides overmolding against two-shot.
4. The bond requirement: what the part has to survive, and the pull or peel result you will accept.
5. Any metal inserts, and whether you supply them. Jack's team normally sources inserts; you give the final spec.

Send it through the quote form, or read how the service runs on the insert molding and overmolding page. If the part is new to production, the golden sample was perfect, lot three was not is worth reading before the first order.

Overmolding buys flexibility; two-shot buys labor back at volume. Decide the volume, prove the bond, then pick the process.

Straight answers

What is the difference between two-shot molding and overmolding?

Overmolding molds the rigid substrate in one tool, then places it in a second tool where the soft material is molded over it. Two-shot molding does both materials in one cycle on a press with two injection units, with the tool moving the part from the first cavity to the second.

Is two-shot molding more expensive than overmolding?

Upfront, usually yes: the two-shot tool is more complex and needs a two-barrel press. It saves labor per part because nobody loads substrates, so it tends to win at high, steady volumes while overmolding tends to win from prototypes up to tens of thousands of parts.

At what volume does two-shot molding make sense?

Published guidance puts overmolding at a few thousand to tens of thousands of parts and two-shot at around 500,000 parts or more. Between those, it depends on labor cost, cycle time and how many years the part will run.

Will TPE bond to my plastic part?

Only if the grades are matched. TPE and TPU grades are formulated to bond to specific substrates such as PC, ABS, PP or nylon. Add a mechanical lock (holes, undercuts, grooves) where the bond matters, and pull or peel test it at first article.

How thick should a soft-touch overmold be?

Xometry's guidance is 1.5 to 3 mm for the best bonding, with the soft layer thinner than the substrate to limit warpage and corner radii of at least 0.5 mm.

How this note was made: researched and drafted with AI assistance, checked against the sources listed below and edited at JCH Design & Manufacturing.
