Blister & clamshell packaging

Blister and clamshell packaging, formed at partner factories.

JCH Design & Manufacturing makes custom blister packaging and clamshell packaging for US brands: clamshells, blisters sealed to a printed paper card, and blister trays, in PVC or PET, with RPET when you want a recycled option.

The forming machines are in house at Jack's own forming factory, so the blister is not outsourced to another shop. The printed card, the hang hole and the barcode are specified with the blister. Packs can be made tamper-evident, and a security tag, a security code or a barcode can go inside.

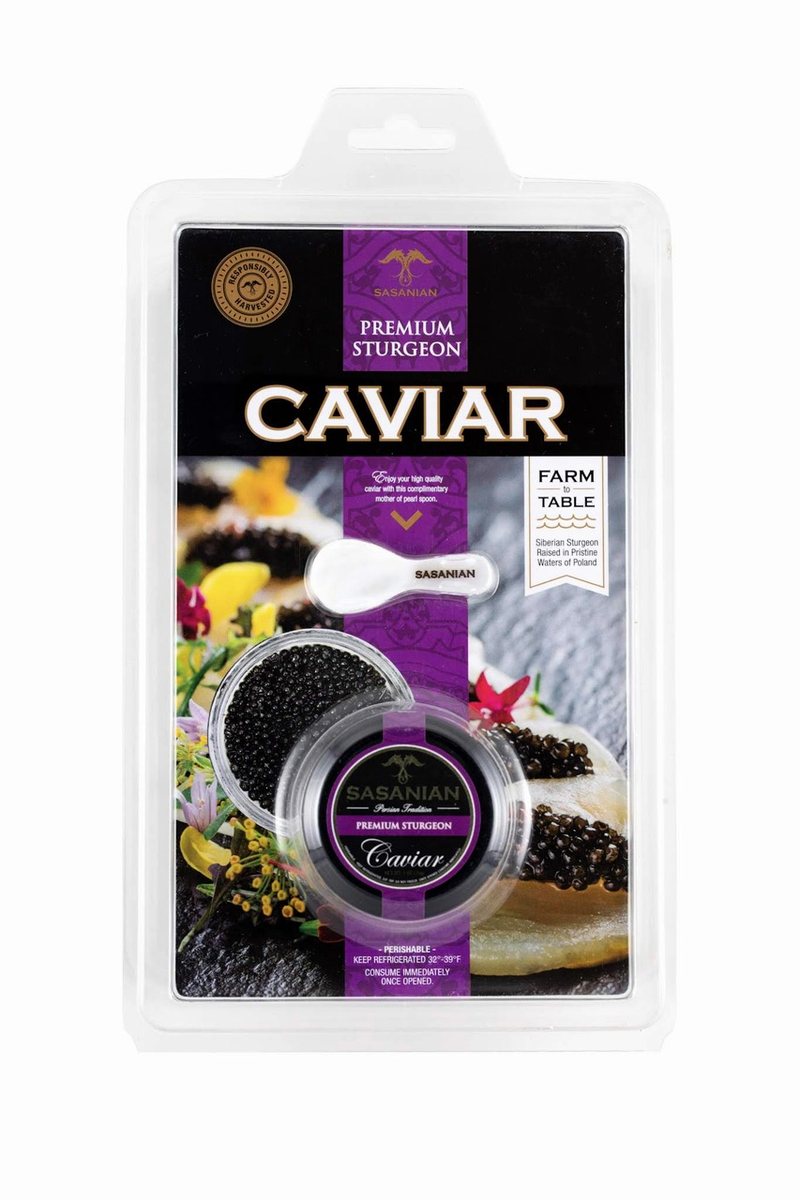

Premium Sturgeon caviar retail blister card
A blister card. A printed card behind a formed blister, made to hang or stand. From a program Jack has worked on.

Formats

Clamshell, blister card, blister tray.

Which one fits depends on the product, the shelf and how the pack is closed.

Clamshell

A hinged, clear pack that folds shut around the product. The product and a printed insert card show through the front.

Blister card

A formed blister sealed to a printed paper backer card, with a hang hole for a peg hook.

Blister tray

A formed tray that holds parts in place inside a box or a carton.

Material and the card

PVC or PET, about 0.25 to 0.5 mm.

Most customers choose PVC or PET. RPET is the recycled option and costs more. The sheet thickness is chosen for the size and weight of the product, about 0.25 to 0.5 mm.

The backer card is printed paper board: color print, the hang hole, and the barcode and copy the retailer asks for. Packs can be made tamper-evident, and a security tag, a security code or a barcode can go inside the blister.

  • SheetPVC or PET; RPET costs more
  • ThicknessAbout 0.25 to 0.5 mm
  • CardPrinted paper backer cards, hang holes
  • Inside the packTamper-evident; security tag or barcode
  • Blister moldQuoted per project, by size
  • SamplesAbout 3 days on a rush

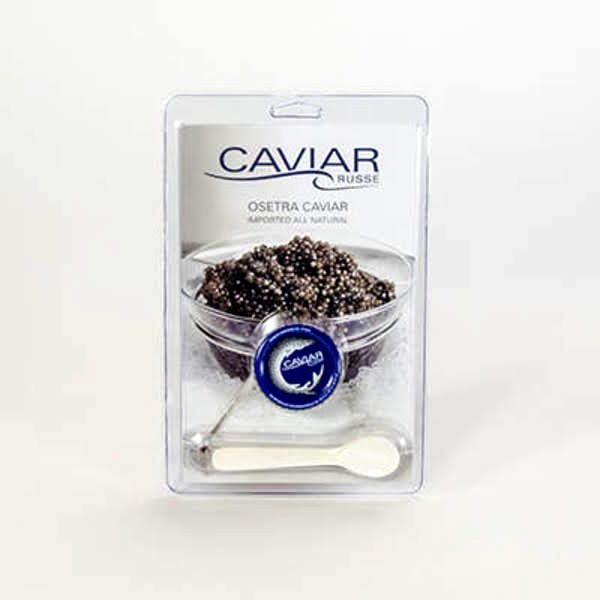

A clear caviar clamshell retail pack with printed card
Clamshell. A clamshell with a printed insert card. The pack does the selling.

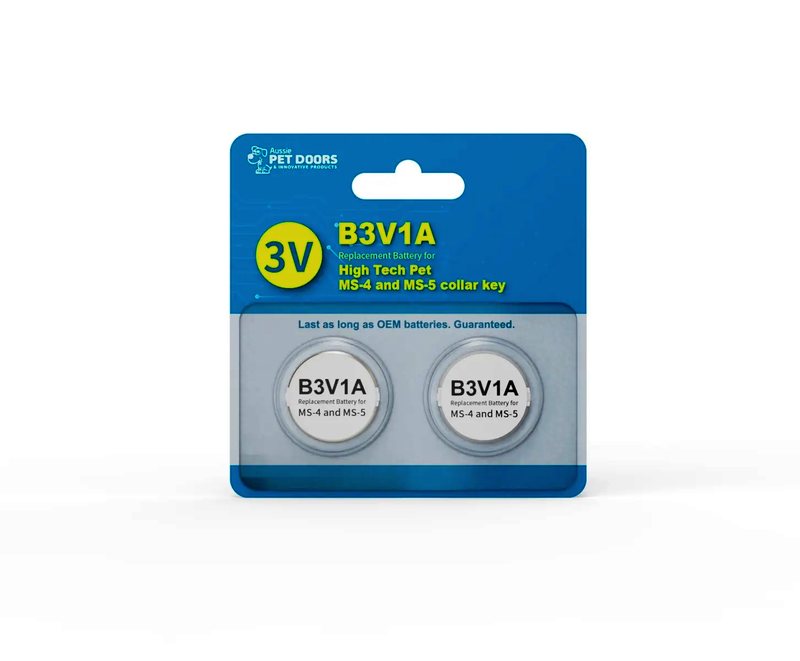

Aussie Pet Doors retail blister card holding two B3V1A batteries
Blister card. A two-cell battery card with a hang hole, printed both sides.

Choosing the sheet

PVC, PET or RPET: what changes.

The three sheets look almost the same on the shelf. They differ in how they seal, how they recycle and what they cost, and those differences decide the choice more often than looks do.

PVC (resin code 3) is the lowest-cost sheet and the easiest to seal to a coated card. PET (resin code 1) is clearer, stays tough in a cold warehouse and is accepted by more curbside recycling programs, which is why many retailers now ask for it. RPET is PET made with recycled content; it costs more and can carry a faint tint. Say early if a retailer has a packaging rule on PVC, because it changes the sheet, the seal and the quote.

  • PVCLowest cost; seals easily to a coated card; resin code 3
  • PETClearer and tougher in the cold; resin code 1; widely recycled
  • RPETRecycled-content PET; costs more; may show a slight tint
  • Ask firstRetailer packaging rules on PVC or recycled content

How the pack closes

Sealed to a card, trapped in a card, or snapped shut.

How the pack is closed decides the material, the card and how hard the pack is to open in the store. It belongs in the spec, not left to the line.

Heat-sealed blister card

The blister's flange is sealed to a backer card that carries a heat-seal coating. The most common retail pack: low cost per piece, and opening it tears the card.

Trapped (slide) blister

The blister's flange is held between two layers of a folded or glued card, with no heat seal. It suits PET, and the plastic and the paper separate easily for recycling.

Clamshell, snapped or sealed

A one-piece hinged shell that closes with press-fit buttons for a pack the buyer can reopen, or is sealed around the edge for a tamper-evident pack that is hard to open.

Which closure suits your product, and what it adds to the cost, is set out in the quote.

Cost, samples and minimums

A small mold, a quick sample.

Packaging samples can sometimes be rushed; ask Jack about timing. The minimum order is normally around 1,000 pieces. These are estimates to plan with; the quote against your product sets the numbers.

  1. Send the product.A sample or its dimensions, and how it should hang or stand on the shelf.
  2. Blister mold and card layout.The mold is cut to the product and the card is laid out with the artwork, hang hole and barcode.
  3. Sample.A formed, sealed sample to check fit and look before the run. Packaging samples can sometimes be rushed; ask Jack about timing.
  4. Run and pack-out.Formed, printed, sealed and cartoned, then checked before the container is sealed.

What to put in the spec

The details that make a blister quote accurate.

A blister is cut to one product, so the quote is only as good as what it is based on. These are the details that most often change the mold, the card or the price when they come in late.

  1. The product itself.A physical sample is best. If not, the outside dimensions, the weight and any part that sticks out or must stay visible.
  2. How it sits on the shelf.Hanging on a peg hook or standing on a shelf, and whether the retailer specifies a hole style (round or the slotted 'sombrero' hole) or a peg spacing.
  3. The card.Size, board thickness, print on one side or both, and the copy the retailer requires: barcode position, warnings, country of origin.
  4. Closure and security.Sealed, trapped or snap-closed, and whether a security tag or code goes inside.
  5. Shipping.How many packs go in each inner and master carton, and any drop test or retailer packaging standard the pack has to pass.

Not sure about some of it? Send what you have. Jack tells you which gaps affect the price and which can wait for the sample. The RFQ checklist covers the rest of the product.

Questions

What buyers ask first.

What is the difference between blister packaging and a clamshell?

A blister is a formed plastic cavity sealed to a printed paper backer card. A clamshell is a hinged plastic pack that folds shut around the product, often with a printed insert card inside.

What materials are used for blister packs?

Mostly PVC or PET. RPET is available as a recycled option and costs more.

How thick is the plastic?

It is chosen for the size and weight of the product, about 0.25 to 0.5 mm.

How much does a blister mold cost?

It is an estimate; the quote sets it.

What is the minimum order for blister packaging?

Normally around 1,000 pieces.

How fast can I get a sample?

Packaging samples can sometimes be rushed; ask Jack about timing.

Can the pack be tamper-evident, with a security tag or barcode inside?

Yes. Blister packs can be made tamper-evident, and a security tag, a security code or a barcode can be placed inside the blister card.

Is PET or PVC better for blister packaging?

PVC costs less and seals easily to a coated card. PET is clearer, tougher in the cold and accepted by more recycling programs, and many retailers now prefer it. RPET is PET with recycled content and costs more.

What is a trapped blister?

A blister held between two layers of a folded or glued card instead of being heat-sealed to it. It works well with PET, and the plastic and the paper separate easily for recycling.

What should I send for a blister packaging quote?

A product sample or its dimensions and weight, whether it hangs or stands, the card size and print, how the pack closes, and the carton count. Missing details can be settled at the sample stage.

Related

Have a product that needs a blister or a clamshell?

Send a sample or a photo and the size of the product. Jack reads it himself and tells you plainly which format fits, and what the mold, the card and the sample involve.
